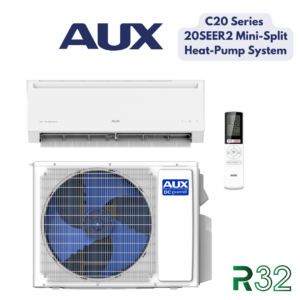

AUX R32 C-Series 12,000 BTU 208/230V 1:1 Mini Split Heat Pump

⚡ IN STOCK IN DFW & HOUSTON

The AUX R32 C-Series 12,000 BTU 208/230V Mini Split Heat Pump is designed for efficient year-round cooling and heating performance using advanced DC inverter technology and environmentally friendly R32 refrigerant. Ideal for bedrooms, offices, garages, apartments, and small residential or light commercial applications.

System Includes

Indoor Unit — AJAN12HP230V1CH
Outdoor Unit — AJAN12HP230V1CO
Wireless Remote — C/111E-1 Included

Key Features

High-efficiency DC inverter compressor
R32 refrigerant
Cooling and heating operation
Quiet indoor and outdoor performance
Compact and service-friendly design
Low ambient heating capability
Built for demanding Texas climates
208/230V power supply

Performance

Rated Cooling Capacity: 12,000 BTU/h
Cooling Capacity Range: 1,700 – 13,300 BTU/h
Heating Capacity Range: 1,700 – 15,000 BTU/h
Cooling Operating Range: 5°F to 125°F
Heating Operating Range: -13°F to 75°F

Efficiency Ratings

SEER2: 21.0
HSPF2: 8.8
EER2: 10.6

Indoor Unit Specifications

Airflow: 380 / 330 / 302 / 273 / 193 CFM
Cooling Sound Levels: 43 / 40 / 36 / 33 / 27 dB(A)
Heating Sound Levels: 43 / 40 / 36 / 33 dB(A)

Indoor Unit Net Dimensions

Height: 7-61/64 in.
Width: 32-53/64 in.
Depth: 11-47/64 in.

Outdoor Unit Specifications

Voltage: 208/230V
Recommended Breaker Size: 15A
System Type: Mini Split Heat Pump

Outdoor Unit Net Dimensions

Height: 23.5 in.
Width: 32.5 in.
Depth: 13.5 in.

Warranty

5-Year Parts Warranty
7-Year Compressor Warranty
Up to 12-Year Extended Warranty when registered within 60 days of installation and installed by a licensed contractor.

📦 Sold by TexanAir (part of UV Mechanical Systems LLC)

👉
Contact Us to Order
